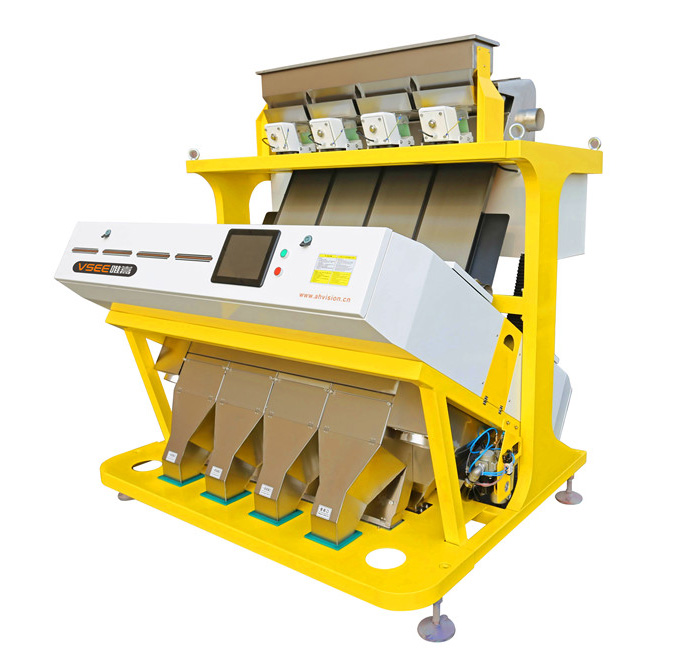

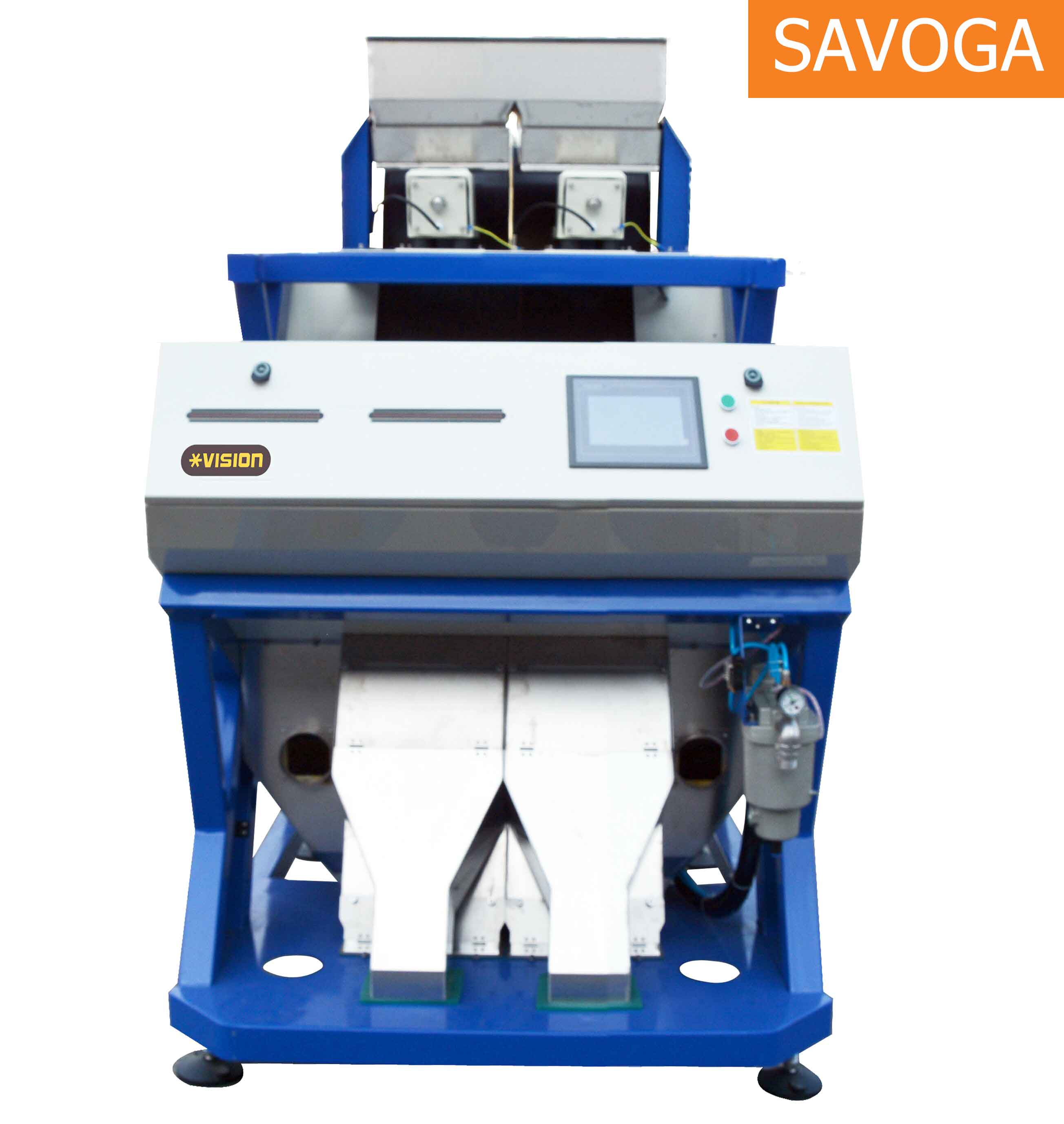

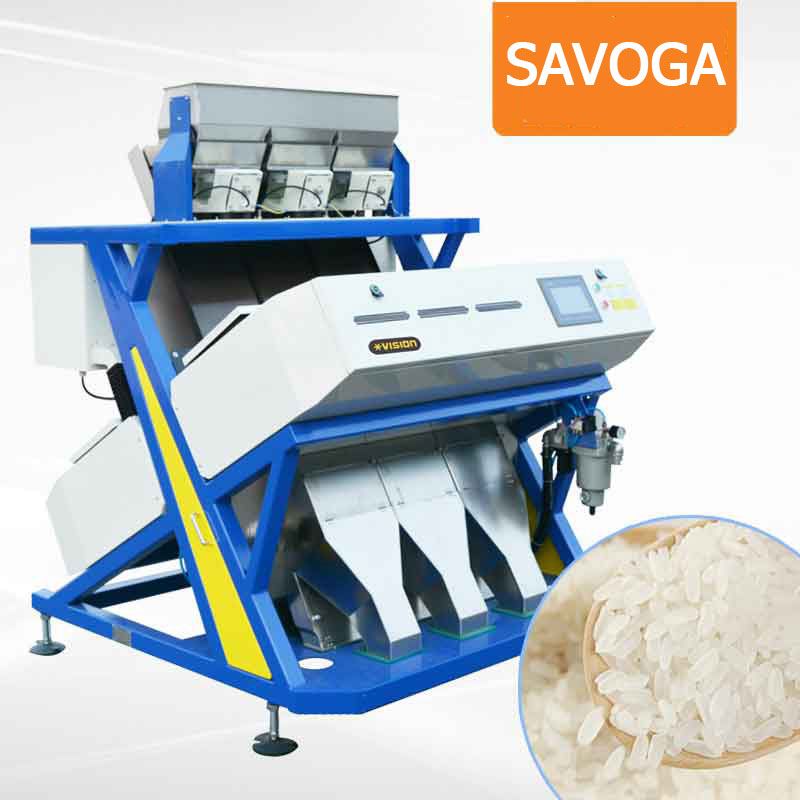

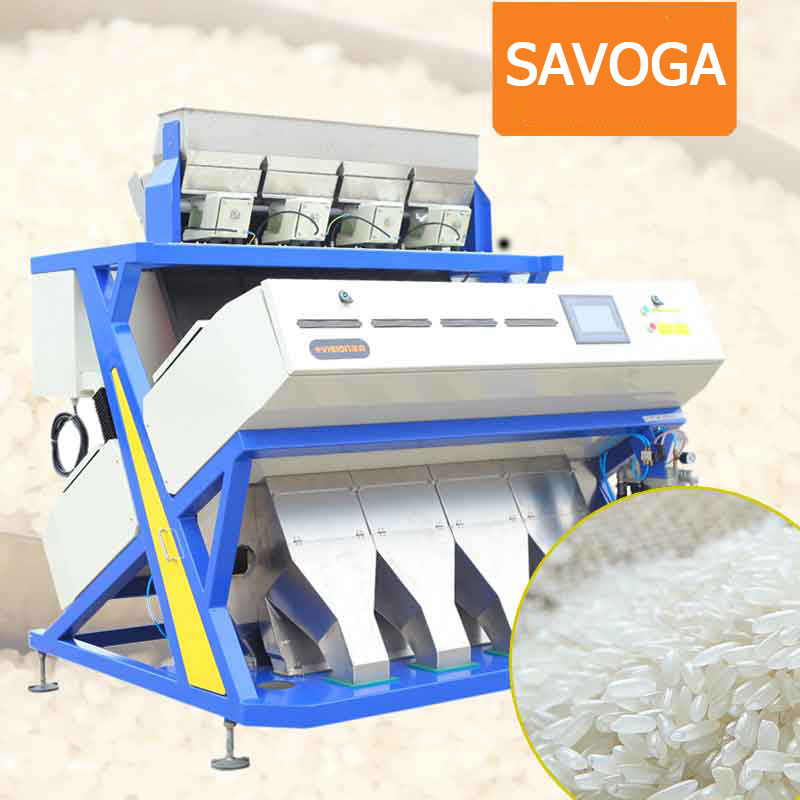

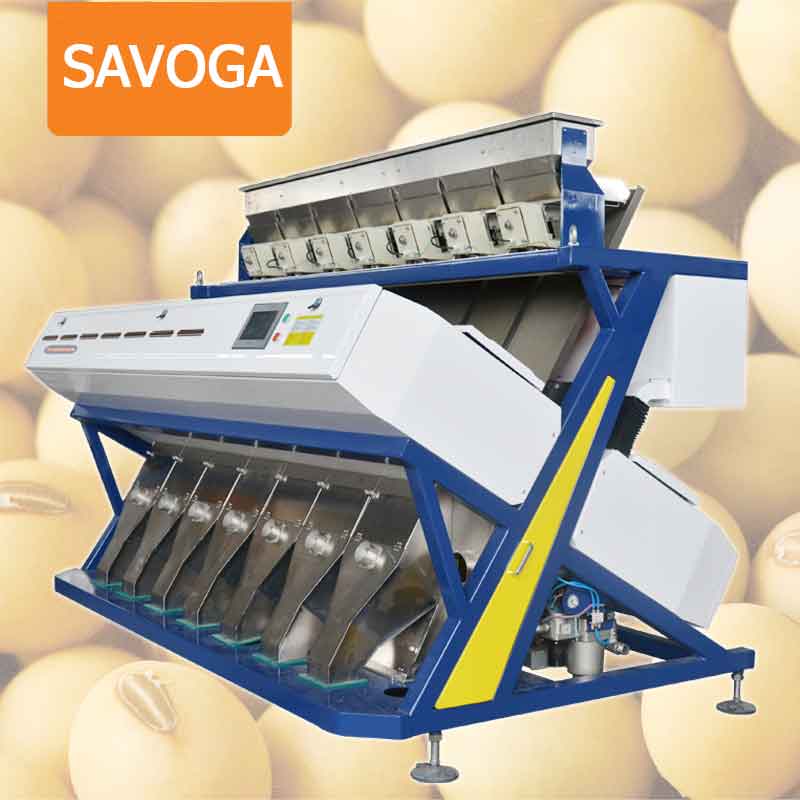

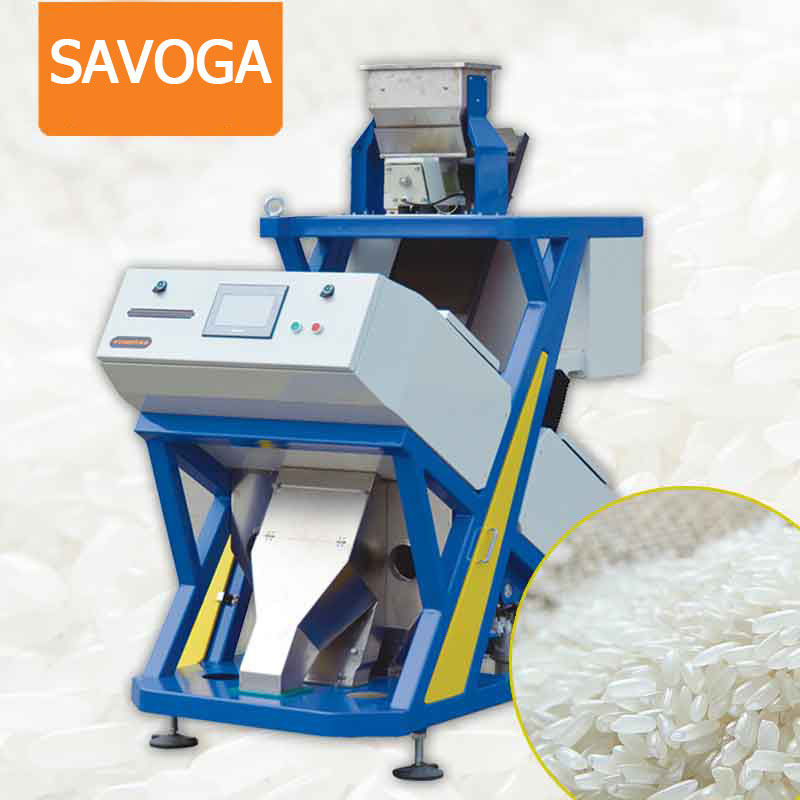

RICE CCD COLOR SORTER

5000+ high performances CCD sensors

The color sorter uses 5000+ high performances CCD sensors with resolution up to 0.1mm.

High quality special industrial lenses

The sorter adopts high quality special industrial lenses designed and manufactured for color sorting .

High speed DSP technology

The high speed DSP technology provides the sorter with fast detection and high identification rate.The special coarse cereal detection algorithm is designed.

Master control system

Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision.

Intelligent closed-loop control

Overall unit adopts intelligent closed-loop control.

10-inch contact screen

The operation interface adopts industrial grade 10-inch contact screen and features simple parameters setting and easy operation.

High speed air valve

High speed air valve is used to ensure quick response, low power consumption and long service life.

Intelligent temperature and air pressure control

panel-bodySorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.

Easy repair

Failure alarm automation and modular construction makes easy repair.

Model	VSN3000-G1A	VSN3000-G2A	VSN3000-G3A	VSN3000-G4A	VSN3000-G5A	VSN3000-G6A	VSN3000-G7A
Channels	64	128	192	256	320	384	448
Throughput	0.5 - 1.5	1.5 - 3.0	2.0 - 4.5	3.0 - 6.5	3.5 - 8.0	4.0 - 10.0	8.0 - 10.0
Accuracy	99.98%	99.98%	99.98%	99.98%	99.98%	99.98%	99.98%
Waste	>1:0.125	>1:0.125	>1:0.125	>1:0.125	>1:0.125	>1:0.125	>1:0.125
Voltage(v)	~220v 50Hz	~220v 50Hz	~220v 50Hz	~220v 50Hz	~220v 50Hz	~220v 50Hz	~220v 50Hz
Power(kw)	1.5	2	2.5	2.5	2.8	3.1	3.4
>=0.6	>=0.6	>=0.6	>=0.6	>=0.6	>=0.6	>=0.6	>=0.6
Consumption(L/min)	500 -- 1200	800 -- 1800	1000 -- 2500	1500 -- 2800	1600 -- 3500	1800 -- 3800	2000 -- 4200
Weight(Kg)	500	700	800	900	1200	1400	1600
Demension(L×W×H)	825x1590x1840	1125x1590x1840	1425x1590x1840	1725x1590x1840	2025x1590x1840	2325x1590x1840	2625x1590x1840
